Version 0.21

Ability to attach actions to Text, Image and Subpage elements

NEW

You can now associate various types of actions with new elements, such as subpages, images, and text. It's important to note that any actions used within a subpage are executed independently.

New slider handle style options

NEW

• Hand border options including border radius
• Hand background color

Pages & Subpages sorting

NEW

Allow set signal value in action as dynamic value (json, variables, etc)

 NEW

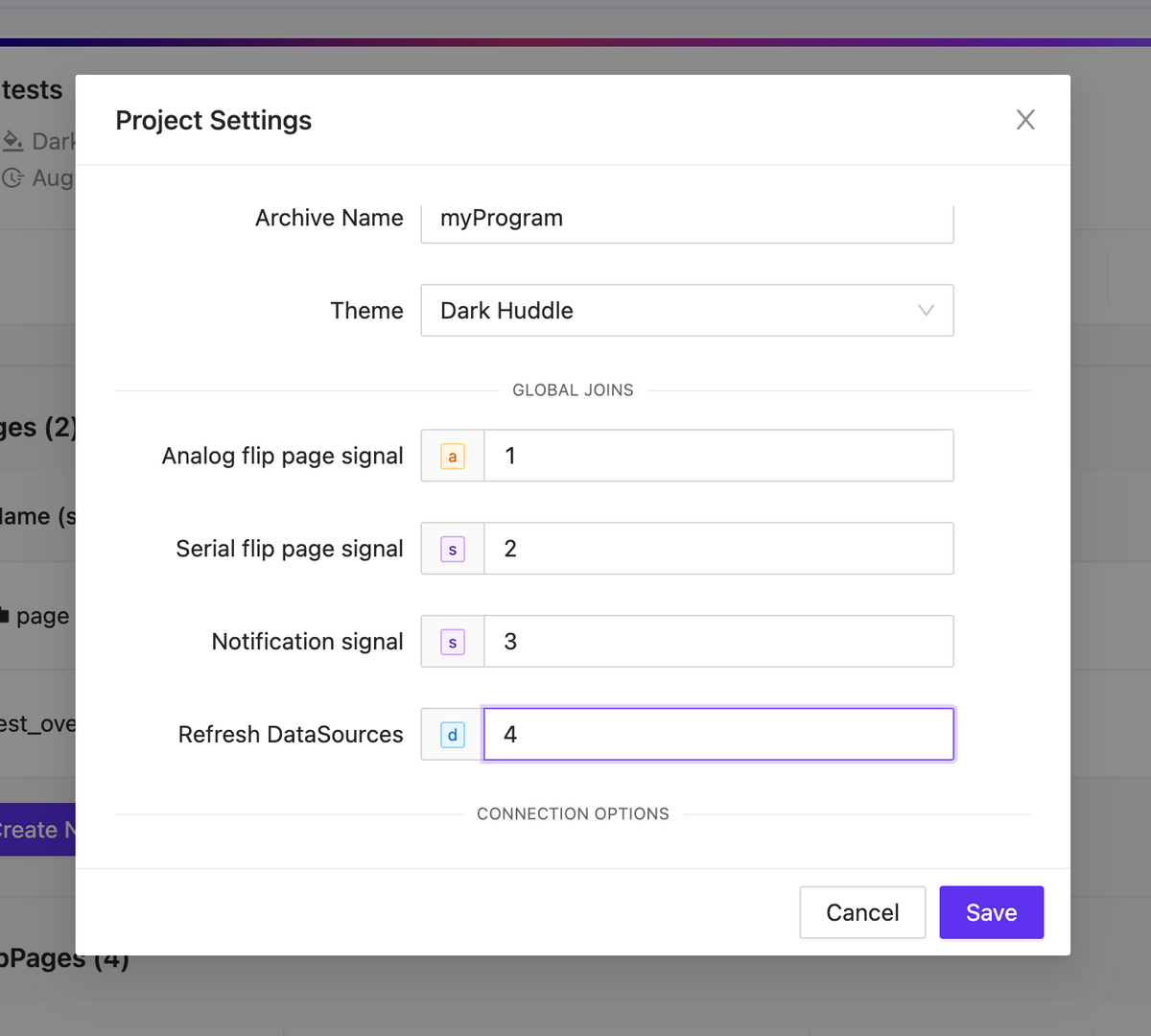

Project global joins

NEW

• Analog flip page signal

Initiate a page flip from the processor using analog feedback. Remember to manually set the page flip ID for this operation.

• Serial flip page signal

Trigger a page flip using the page name as a reference.

• Notification signal

Inside your project settings, you have the option to define a serial signal name. When feedback is received from the processor, the text will be displayed as a notification using the specified signal name.

• Refresh DataSources

Activate a datasources update by using signal feedback.

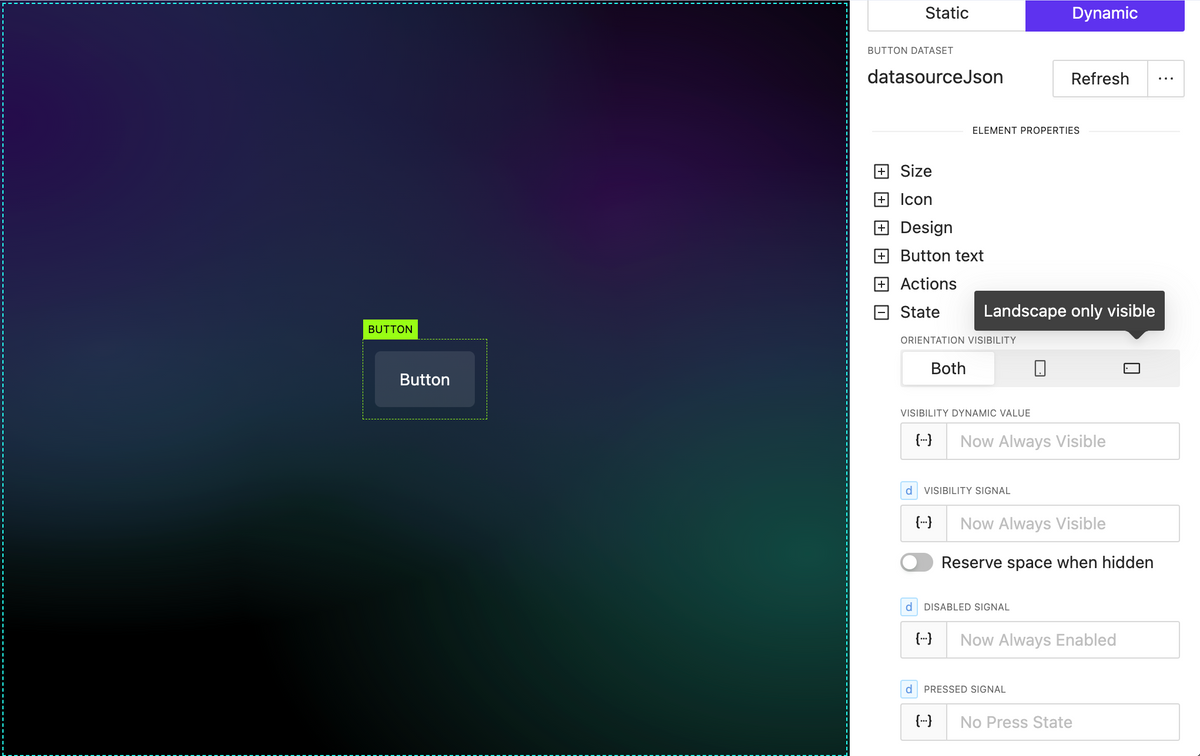

Element extended visibility

NEW

• By orientation

Element orientation visibility refers to the position of an element, such as text, an image, or any other component, and whether it's currently visible within the current orientation.

• By dynamic value (variable, parameter, json datasource)

By utilizing dynamic values within your project, you can dynamically update whether elements are visible or not, all without the need for external processor interactions.

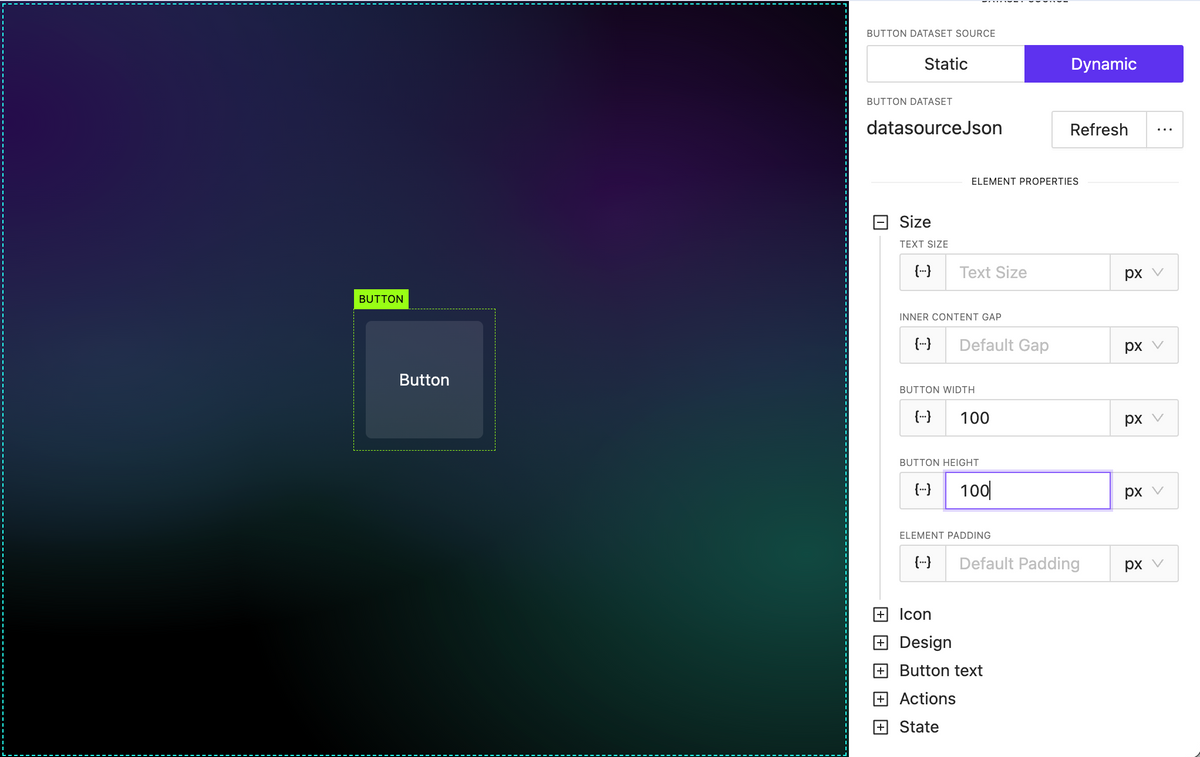

Added button height property

NEW

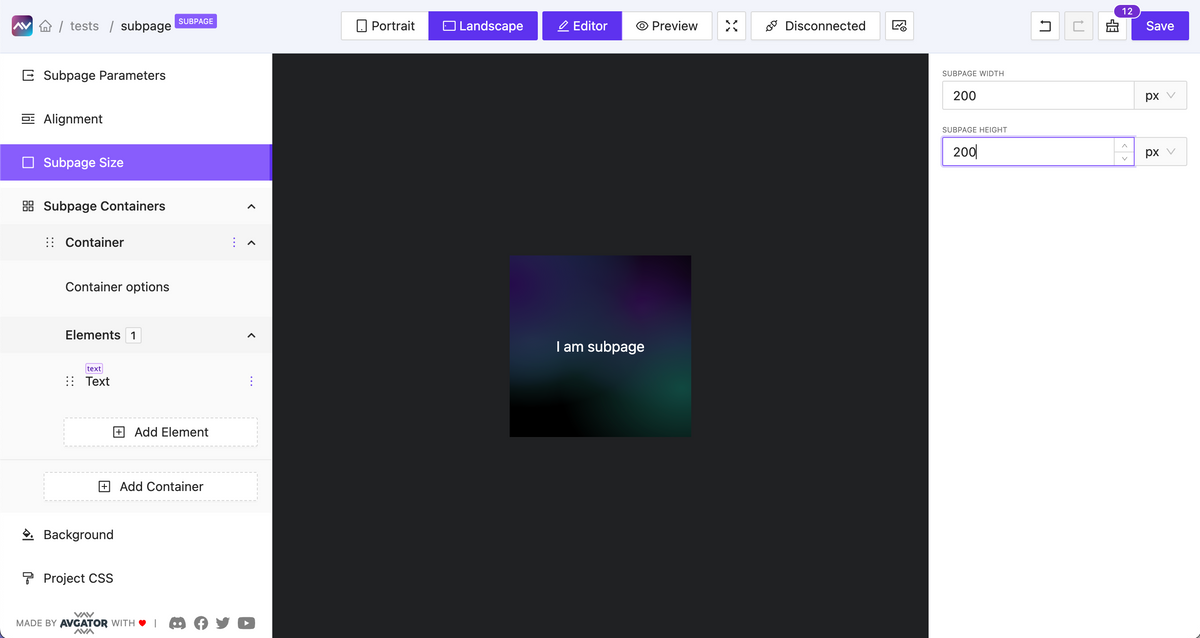

Subpage optional default fixed size

NEW

You can enable the option to set a fixed width and height for a subpage.

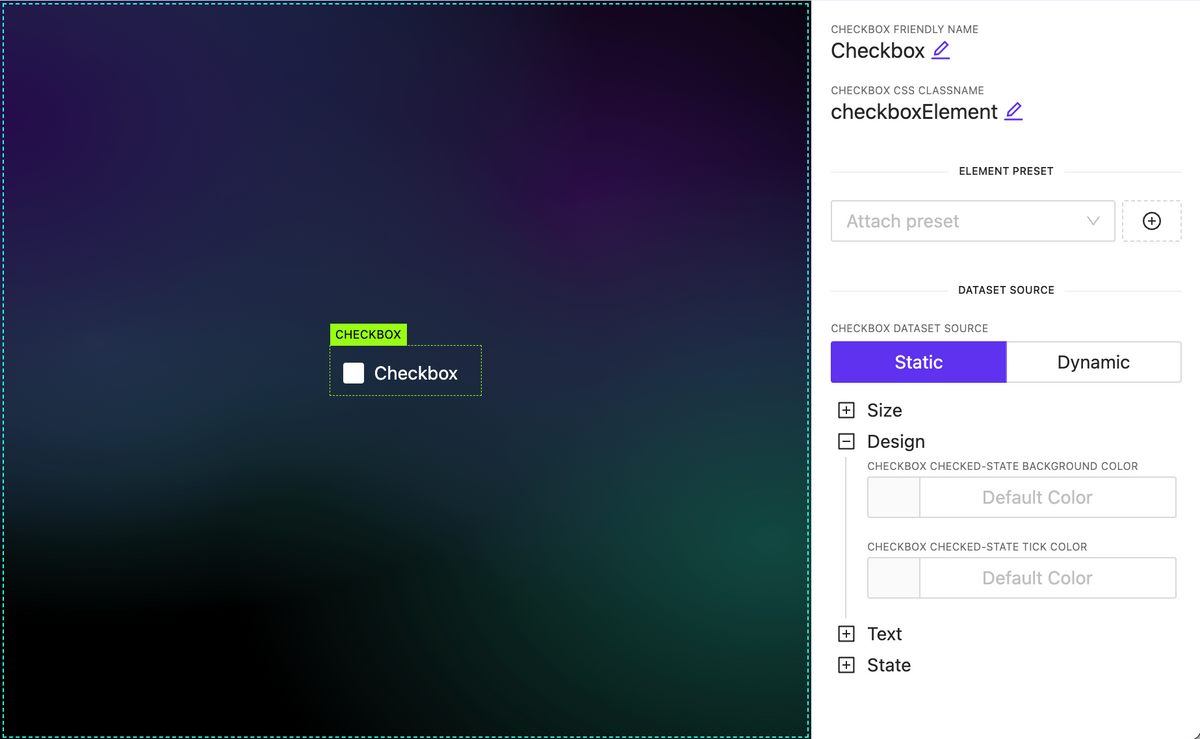

Added Checkbox element

NEW

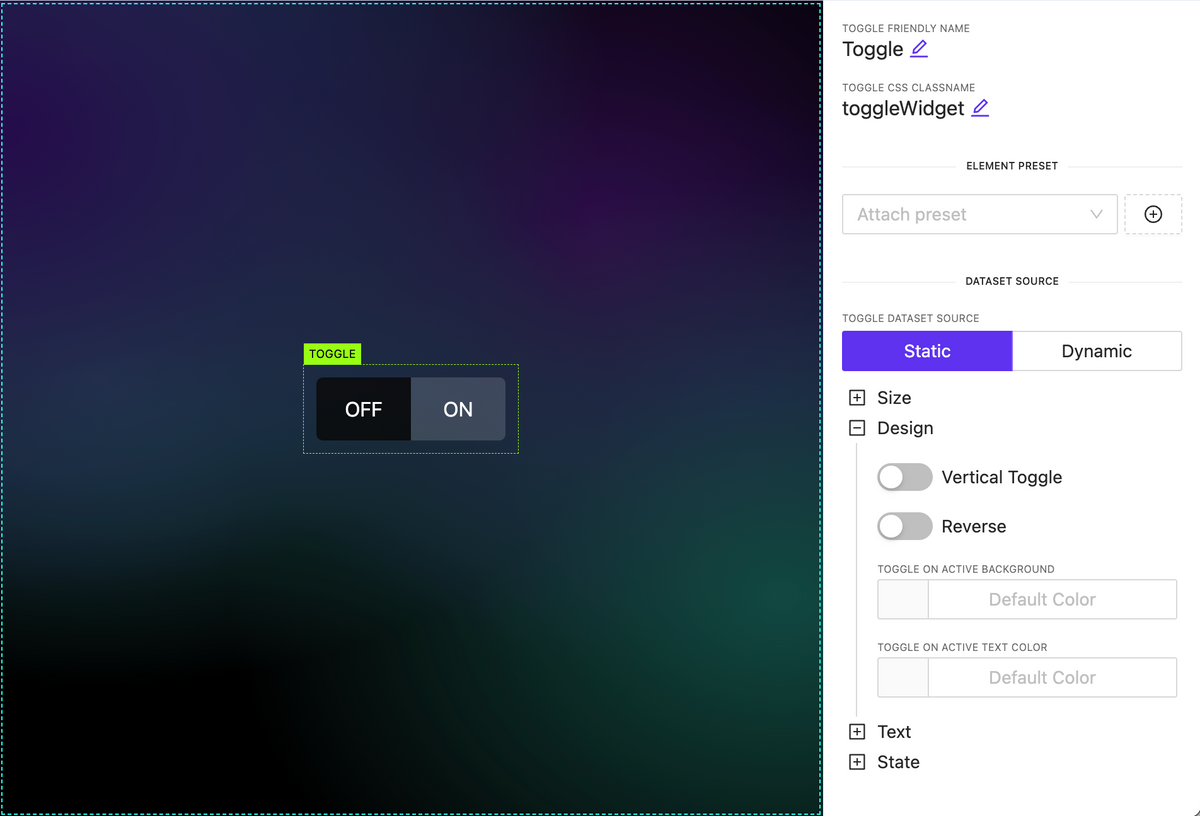

Added Toggle Switch widget

NEW

Added Circle Slider widget

NEW

A highly customizable circular slider widget that can be employed for various purposes, including climate and sound controls, among others. It allows dynamic content configuration for all elements inside.

Subpage parameters

NEW

Pass data from the parent element down to a nested subpage as input parameters and utilize this data within the subpage.

Overlays

NEW

A new action type has been introduced, functioning as a trigger to display an overlay. The overlay can be any type of subpage containing various data, appearing on top of the page content. Numerous customization options are available, including:

• Adjustable overlay placement on the page.
• Customizable overlay mask styles and local mask design.
• Automatic closure by timeout or clicking outside the overlay.

Set icon dynamically

NEW

You can now set the icon name as a string, even when it's sourced dynamically. To discover the full range of available icons, you can utilize the Icon Explorer feature, providing greater flexibility in choosing and displaying icons within your project.

Dynamic image external source

NEW
